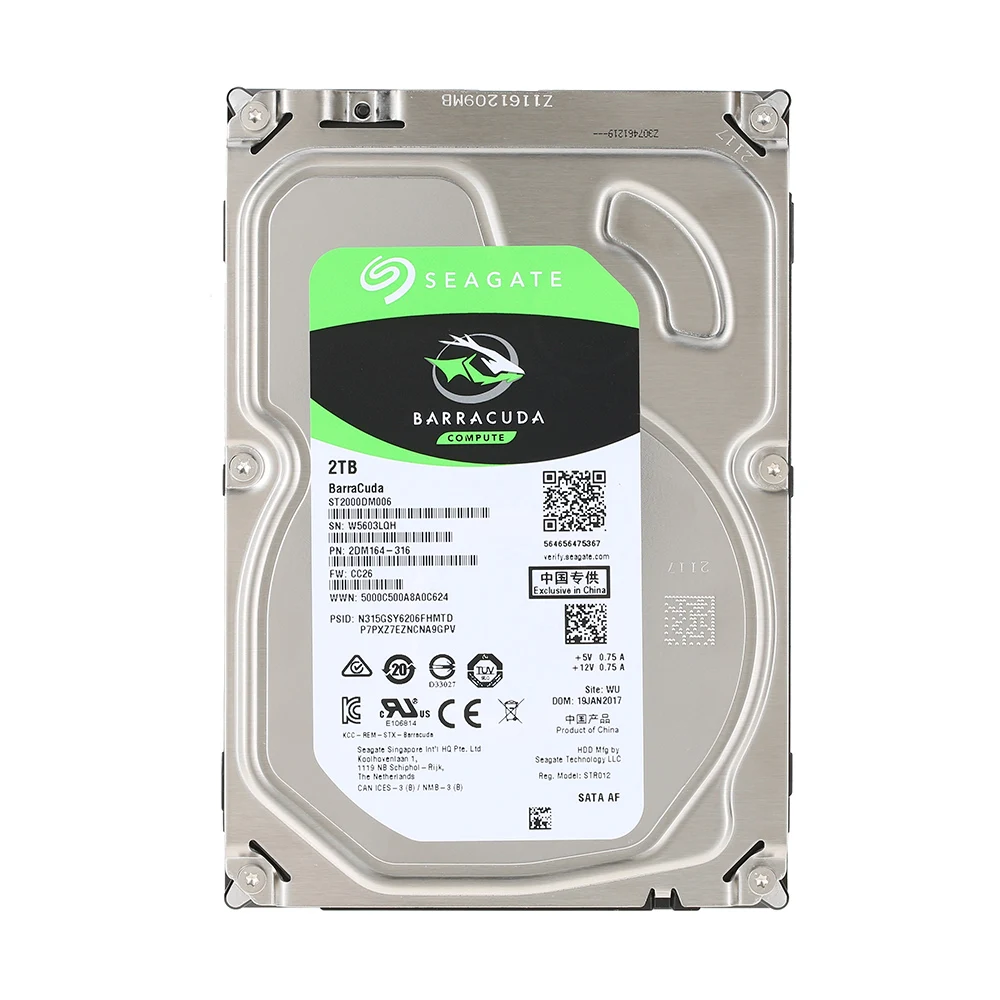

What Is 2tb Hdd
2TB external hard drive is a hard drive that has two terabytes of storage and that is separate from your computer, giving you the freedom to take it wherever you want. At the core of every external hard drive is at least one internal hard drive that has been fitted into an external case. Take important files with you easily with this Seagate Expansion STEA2000400 hard drive, which offers 2TB of storage and a portable design. Automatic back-up software ensures your files are safe, and plug-and-play operation provides ease of use. See all External Hard Drives. In order for an operating system to fully support storage devices that have capacities that exceed 2 terabytes (2 TB, or 2 trillion bytes), the device must be initialized by using the GUID partition table (GPT) partitioning scheme. This scheme supports addressing of the full range of storage capacity.
-->This article discusses the manner in which Windows supports hard disks that have a storage capacity of more than 2 TB and explains how to initialize and partition disks to maximize space usage.
Original product version: Windows Server 2019, Windows Server 2016, Windows Server 2012 R2
Original KB number: 2581408
Summary
In order for an operating system to fully support storage devices that have capacities that exceed 2 terabytes (2 TB, or 2 trillion bytes), the device must be initialized by using the GUID Partition Table (GPT) partitioning scheme. This scheme supports addressing of the full range of storage capacity. If the user intends to start the computer from one of these large disks, the system's base firmware interface must use the Unified Extensible Firmware Interface (UEFI) and not BIOS.
This article outlines Microsoft support across all Windows versions since Windows XP. It also describes the requirements to address the full storage capability of these devices.
Note
- This article refers to disk capacity in powers of two instead of powers of 10, which is the more common designation on storage device capacity labels. Therefore, references to 2 TB actually refer to a product that is labeled as having 2.2 TB of capacity.
- The operating system-specific behavior that is noted in this article also applies to the server variants of that system. Therefore, a reference to Windows 7 includes Windows Server 2008 R2, Windows Vista includes Windows Server 2008, and Windows XP includes Windows Server 2003 and Windows Server 2003 R2.
More information
The management of modern storage devices is addressed by using a scheme called Logical Block Addressing (LBA). It's the arrangement of the logical sectors that constitute the media. LBA0 represents the first logical sector of the device, and the last LBA designation represents the last logical sector of the device, one label per sector. To determine the capacity of the storage device, you multiply the number of logical sectors within the device by the size of each logical sector. The current size standard is 512 bytes. For example, to achieve a device that has a capacity of 2 TB, you must have 3,906,250,000 512-byte sectors. However, a computer system requires 32 bits (1 s and 0 s) of information to represent this large number. Therefore, any storage capacity that is greater than what can be represented by using 32 bits would require an additional bit. That is, 33 bits.
The problem in this computation is that the partitioning scheme that is used by most modern Windows-based computers is MBR (master boot record). This scheme sets a limit of 32 for the number of bits that are available to represent the number of logical sectors.
The 2-TB barrier is the result of this 32-bit limitation. Because the maximum number that can be represented by using 32 bits is 4,294,967,295, it translates to 2.199 TB of capacity by using 512-byte sectors (approximately 2.2 TB). Therefore, a capacity beyond 2.2 TB isn't addressable by using the MBR partitioning scheme.
To make more bits available for addressing, the storage device must be initialized by using GPT. This partitioning scheme lets up to 64 bits of information be used within logical sectors. It translates to a theoretical limitation of 9.4 ZB (9.4 zettabytes, or 9.4 billion terabytes). However, the issue that affects GPT is that most currently available systems are based on the aging BIOS platform. BIOS supports only MBR-initialized disks to start the computer. To restart from a device that is initialized by using GPT, your system must be UEFI-capable. By default, many current systems can support UEFI. Microsoft expects that most future systems will have this support. Customers should consult with their system vendor to determine the ability of their systems to support UEFI and disks that have storage capacities that are greater than 2 TB.
Overall requirements for a non-bootable data volume
For a system to be able to address the maximum capacity of a device that has a storage capacity of more than 2 TB, the following prerequisites apply:
The disk must be initialized by using GPT.
The Windows version must be one of the following (32-bit or 64-bit, unless otherwise noted, but including all SKU editions):
- Windows Server 2008 R2 (only 64-bit version available)
- Windows Server 2008
- Windows 7
- Windows Vista
The latest storage drivers from your storage controller manufacturer must be installed. For example, if your system uses an Intel storage controller that is set to 'RAID' mode, make sure that you have the latest applicable drivers from the Intel support site.
Overall, you should contact your system vendor to determine whether the system supports device sizes of more than 2 TB.
Overall requirements for a bootable system volume
Assume that you want to meet the following conditions:
- Have a storage device on which you can install Windows.
- Make the storage device bootable.
- Enable the operating system to address a maximum storage capacity for that device of greater than 2 TB.
To meet these conditions, the following prerequisites apply:
The disk must be initialized by using GPT.
The system firmware must use UEFI.
The Windows version must be one of the following (64-bit only, but including all SKU editions):
- Windows Server 2008 R2
- Windows Server 2008
- Windows 7
- Windows Vista
The latest storage drivers from your storage controller manufacturer must be installed. For example, if your system uses an Intel storage controller set to RAID mode, make sure that you have the latest applicable drivers from the Intel support site.
Note
Windows does not support starting GPT-initialized volumes by using UEFI systems on 32-bit versions of Windows. Also, legacy BIOS systems do not support starting GPT-partitioned volumes. Consult your system vendor to determine whether the system supports both UEFI and the startup of devices that have storage capacities of greater than 2 TB.
Support matrix
The following tables list Microsoft support for the various concepts that are discussed in this article. This information provides an overall support statement about disks that have a storage capacity of greater than 2 TB.
Table 1: Windows support for partitioning schemes as data volumes
| System | MBR | Hybrid-MBR | GPT |
|---|---|---|---|
| Windows 7 | Supported | Not Supported | Supported |
| Windows Vista | Supported | Not Supported | Supported |
| Windows XP | Supported | Not Supported | Not Supported |
Hybrid-MBR is an alternative style of partitioning that isn't supported by any version of Windows.
Table 2: Windows support for system firmware
| System | BIOS | UEFI |
|---|---|---|
| Windows 7 | Supported | Supported |
| Windows Vista | Supported | Supported |
| Windows XP | Supported | Not Supported |
Table 3: Windows support for combinations of boot firmware and partitioning schemes for the boot volume
| System | BIOS + MBR | UEFI + GPT | BIOS + GPT | UEFI + MBR |
|---|---|---|---|---|
| Windows 7 | Supported | Supported; requires a 64-bit version of Windows | Boot volume not supported | Boot volume not supported |
| Windows Vista | Supported | Supported; requires a 64-bit version of Windows | Boot volume not supported | Boot volume not supported |
| Windows XP | Supported | Not supported | Boot volume not supported | Boot volume not supported |
Table 4: Windows support for large-capacity disks as non-booting data volumes
How Much Storage Is 2tb
| System | >2-TB single disk - MBR | >2-TB single disk - Hybrid-MBR | >2-TB single disk - GPT |
|---|---|---|---|
| Windows 7 | Supports up to 2 TB of addressable capacity** | Not Supported | Supports full capacity |
| Windows Vista | Supports up to 2 TB of addressable capacity** | Not Supported | Supports full capacity |
| Windows XP | Supports up to 2 TB of addressable capacity** | Not Supported | Not Supported |
Capacity beyond 2 TB cannot be addressed by Windows if the disk is initialized by using the MBR partitioning scheme. For example, for a 3-TB single disk that is initialized by using MBR, Windows can create partitions up to the first 2 TB. However, the remaining capacity cannot be addressed and, therefore, cannot be used.
Initialize a data disk by using GPT
The following steps show how to initialize a fresh disk by using the GPT partitioning scheme to help ensure that Windows can address the maximum available storage capacity. Make sure that you back up any important data before you try these steps.
Click Start, type diskmgmt.msc in the Start search box, right-click diskmgmt.msc, and then click Run as Administrator. If it's necessary, enter the credentials for a user account that has Administrator privileges.
Note
When a non-initialized disk is detected by Windows, the following window opens to prompt you to initialize the disk.
In the Initialize Disk dialog box, click GPT (GUID Partition Table), and then press OK.
Note
If you select this option, this hard disk will not be recognized by Windows versions earlier than and including Windows XP.
Check the Disk Management window to verify that the disk is initialized. If it is, the status row for that disk at the bottom of the window should indicate that the disk is Online.
After the disk is initialized, you must create a partition, and then format that partition by using a file system. It's to be able to store data in that partition, and assign a name and a drive letter to that partition. To do it, right-click the unallocated space on the right side of the status row for that disk, and then click New Simple Volume. Follow the steps in the partition wizard to complete this process.
Convert an MBR disk to GPT
If you have previously initialized the disk by using the MBR partitioning scheme, follow these steps to initialize the disk by using the GPT scheme. Make sure that you back up any important data before you try these steps.
Click Start, type diskmgmt.msc in the Start search box, right-click diskmgmt.msc, and then click Run as Administrator. If it's necessary, enter the credentials for a user account that has Administrator privileges.
In the Disk Management window, examine the disk status rows at the bottom. In the following example, the user has a 3-TB disk that was previously initialized by using the MBR partitioning scheme. That device is labeled here as Disk 1.
Disk 1 contains two separate unallocated sections. This separation indicates that the first 2 TB of the disk space can be used. However, the remaining space is non-addressable because of the 32-bit addressing space limitation of the MBR partitioning scheme. To enable the system to fully address the total capacity of the storage device, you must convert the disk to use the GPT partitioning scheme.
Right-click the label on the left for the disk that you want to convert, and then click Convert to GPT Disk.
Note
The display should now show that the full amount of available space in unallocated.
Now that the disk is initialized to access the full storage capacity, you must create a partition, and then format that partition by using a file system. It's to be able to store data in that partition, and assign a name and a drive letter to that partition. To do it, right-click the unallocated space on the right side of the status row for that disk, and then click New Simple Volume. Follow the steps in the partition wizard to complete this process.
Known issues or limitations
Because the transition to a single-disk capacity of greater than 2 TB has occurred fairly recently, Microsoft has investigated how Windows supports these large disks. The results reveal several issues that apply to all versions of Windows earlier than and including Windows 7 with Service Pack 1 and Windows Server 2008 R2 with Service Pack 1.
To this point, the following incorrect behavior is known to occur when Windows handles single-disk storage capacity of greater than 2 TB:
What Is 2tb Hdd
The numeric capacity beyond 2 TB overflows. It results in the system being able to address only the capacity beyond 2 TB. For example, on a 3-TB disk, the available capacity may be only 1 TB.
The numeric capacity beyond 2 TB is truncated. It results in no more than 2 TB of addressable space. For example, on a 3-TB disk, the available capacity may be only 2 TB.
The storage device isn't detected correctly. In this case, it isn't displayed in either the Device Manager or Disk Management windows. Many storage controller manufacturers offer updated drivers that provide support for storage capacities of more than 2 TB. Contact your storage controller manufacturer or OEM to determine what downloadable support is available for single-disk capacities that are greater than 2 TB.
SCSI sense data
When a disk encounters errors that are related to unreadable or unwritable sectors, it reports those errors and the relevant SCSI sense data to the operating system. SCSI sense data may contain information about LBA for sectors that were found to be unreadable or unwritable.
For LBA address space that is greater than 2 TB, the disk requires SCSI sense data in Descriptor format. This format isn't supported by Windows 7 or Windows Server 2008 R2, which retrieves SCSI sense data in Fixed format. Therefore, the retrieved SCSI sense data either does not contain information about bad sectors or it contains incorrect information about bad sectors. Administrators should note this limitation when they look for bad sector LBA information that's recorded in the Windows event log.
When it comes to video editing, time is money. This is why video editors are always looking for the state of the art hardware to improve their editing workflow. And since, storage is the backbone of editing, if you don't have good storage, then your entire project can be in danger.
So what is the difference between an external hard-drive (HDD) and an external solid state drive (SSD)? Why would I want a SDD instead of a HDD for video editing?
Here is what you need to know.
Solid State Drives are Faster
Compared to HDDs, SSDs can transfer data between 300mb/s - 40gb/s (depends on the drive) and HDD's are much slower, between 20mb/s - 220mb/s.
Why is the SSD faster? Well, an SSD stores data on microchips, while hard-drives store data on a rotating platter, and using magnetism to read and write data. So every time you request to store or process data on an HDD, it will spin to read it. While, SSD, is simply opening a file instantly because it has its own processor and uses flash based memory to process data.
Today, most laptops and computers use SSDs for the internal storage, but external SSDs are becoming more and more popular.
So if you are a Video Editor, an SDD means that your software can quickly process, open and render files that is stored on your SSD.
Solid State Drives Are Quieter & Smaller
Simply by the nature of their design, HHD will always be louder because they must spin to retrieve date. SSD's have no so much mechanism, so there is no sound. This is especially important if you need a quiet space to record audio -- with a loud HDD near by it's not going to work!
SSDs are smaller in size and easily portable! But they currently are only available in smaller storage sizes than HDD. For example, they are available in 128GB, 500GB, 1TB or 2TB. It's rare to find any SSDs on the consumer market larger than that 2TB.
So if you need one drive with one than 2TB of space, you may need to stick with HDD until SSD gets up to 10TB in the consumer market. But you can always consider getting multiple 2TB drives and make them backups of each other to ensure safety of your footage.
Solid State Drives Are Safer
Unlike HDDs, SSDs cannot be erased by magnets because the data is not written with a magnet. Also, an SSD can live beyond the editor! Because of their flash memory design, the data can last easily over 100 or 200 years. Compare that to a HDD, which has a typical life-space of 5-10 years. But of course, they are more likely to fail sooner than that because of their platter and magnetic spin hard-ware.
But, Solid State Drives Are More Expensive
Storage Review notes that SSD can cost about $0.35-$1.50 per gigabyte and hard-drives costs $0.05 per gigabyte. This is why hard-drives are far more saturated in the market, because they can afford them.
For example, the cheapest SSD you can find on the market runs for about $350 for 1TB (and typically the cheapest has the slowest transfer speed of the SSD spectrum), and the cheapest HDD you can find is $49.99 for 1TB.
So what do you think? Do you think it's worth it to have faster speed, multiple SSD drives and pay a little more? Or would you want to pay less and purchase larger HDDs to store data. Another option would be to buy a large 10-20TB HDD system as your archive and backup, and use an external SDD to work on your currently projects from.
Let me know what drive setup you prefer in a comment below!
